our company can undertake cold storage projects of various size and materrials

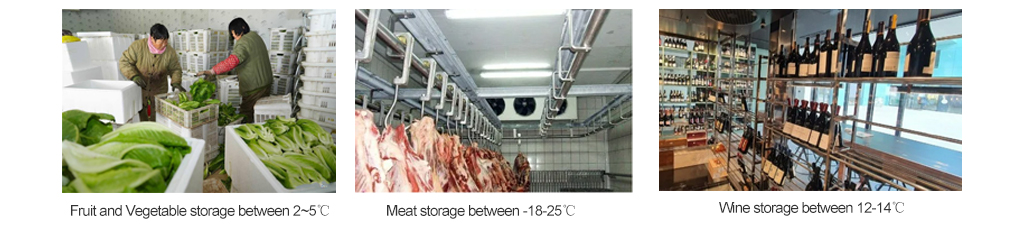

the temperature is customized according to customer requirements,maninly divided into the following categories:
1、Preservation:also known as high-temperature cold storage,it is mainly used to preserve perishable foods,such as fresh vegetables and fruits,eggs,etc.the cold storage temperature is usually 2-5℃。
2、Cold storage：the temperature of cold storage is usually -12℃
3、Freezing：it is used to freezer various foods,such as frozen fish,chicken and meat.The cold storage temperature is usually -18~-25℃。
4、Quick freezing:it is used for articles that need to be frozen in a short time,and the temperature is usually controlled at -30~-50℃ each cold storage shall be designed and produced is full accordance with the actual situation of the installation place,so as to achieve the best performance and the purpose of energy saving and xonsumption reduction.
Product Description |

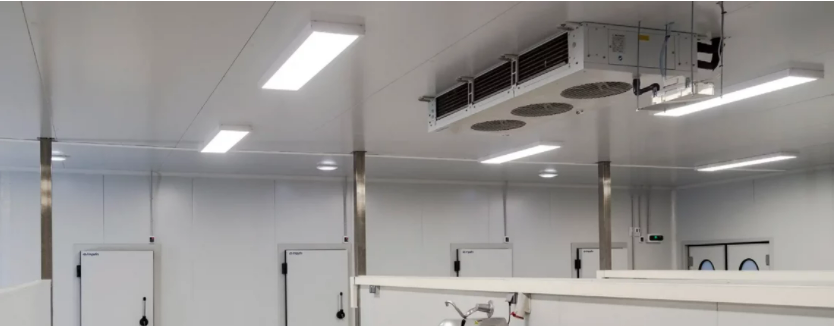

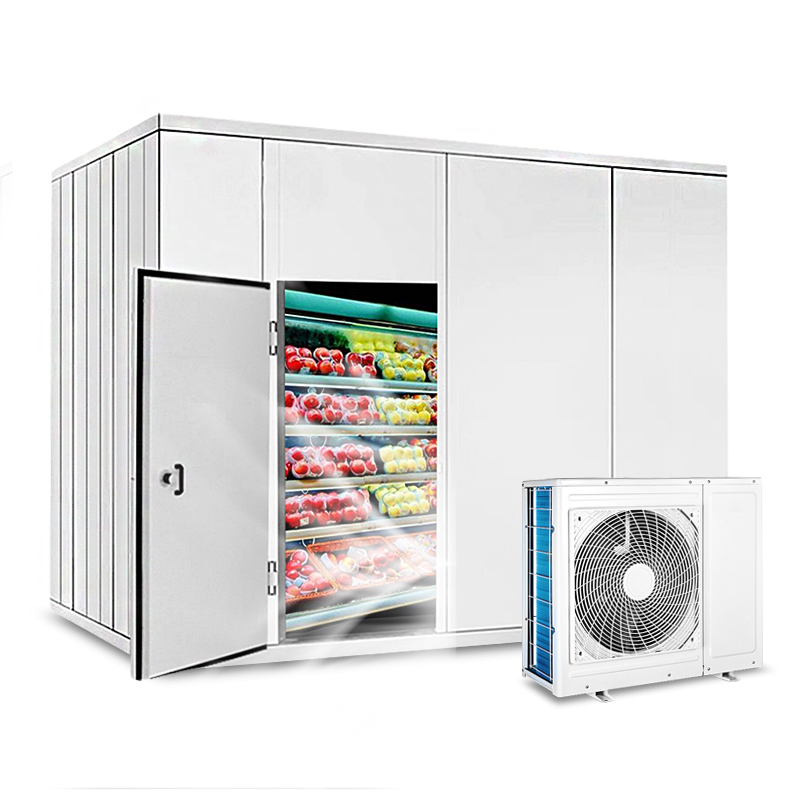

Our cold rooms offer reliable, efficient environmental controls for a variety of applications; including: GMP Storage and Cold Storage for Seed and Agricultural Products, Nutritional Supplements, and more. Our cold rooms are typically supplied with desiccant or refrigeration based dehumidification in order to maintain a low dew-point and prevent ice accumulation on both product and equipment surfaces.

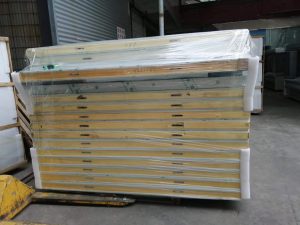

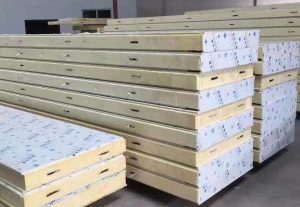

Our cold storage panel uses double-sided 0.326 color steel 10cm polyurethane cold storage plate . Our PU panel can reach B2 fireproofing grade, with durable zinc-coated cam lock, and 41±2 kg/m3 high density PU foam, and very easy to install. It can keep cold room lifetime to 20 years at least.
B2 Fireproofing PU panels, no risks
Our PU panel foam use polyester that reach B2 fireproof grade. It is difficult to burn and without smoke.
Cold Room Parameter |
|
Dimension
|
Length (m) *Width (m)*Height (m). customized
|
|
Thickness of panel
|
polyurethane insulation panel,40kg/m3, Fire Prevention B2 Engineering Grade
|
|
Steel cover of cold room
|
50mm, 75mm,100mm, 120mm,150mm,200mm optional,accept customised
|
|
Panel Connection
|
stainless steel plates,color steel plates and embossed aluminum plates
|
|
Refrigeration type
|
air cooled R404a or R22
|
|
Fittings of cold room
|
all necessary fittings are included, optional
|
|
Voltage of cold room
|
220V/50HZ, 220V/60HZ, 380V/50HZ optional
|

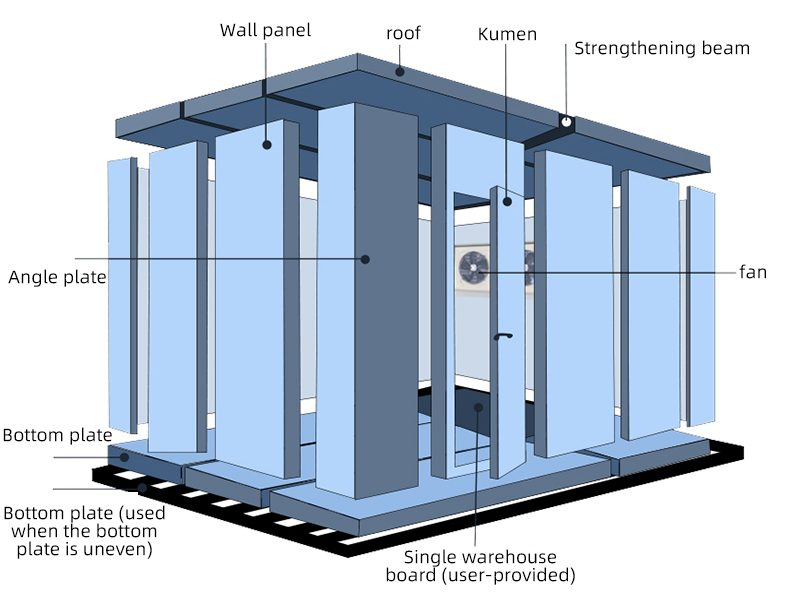

A cold room needs the following parts:
- Panels, floors and roofs, usually made of sandwich panels. The sandwich panel is composed of two steel sheets protecting an insulating core of high density polyurethane. This panel is responsible for the most efficient and durable cooling of the cold room.
Airtight door. It can be sliding or pivoting, and incorporate an air curtain, or louvres to mitigate cold losses with each door opening.
Humidifiers or dehumidifiers. These allow humidity (relative humidity) to be added to or removed from the cold room in such a way that it adapts to the best preservation conditions for the stored product.

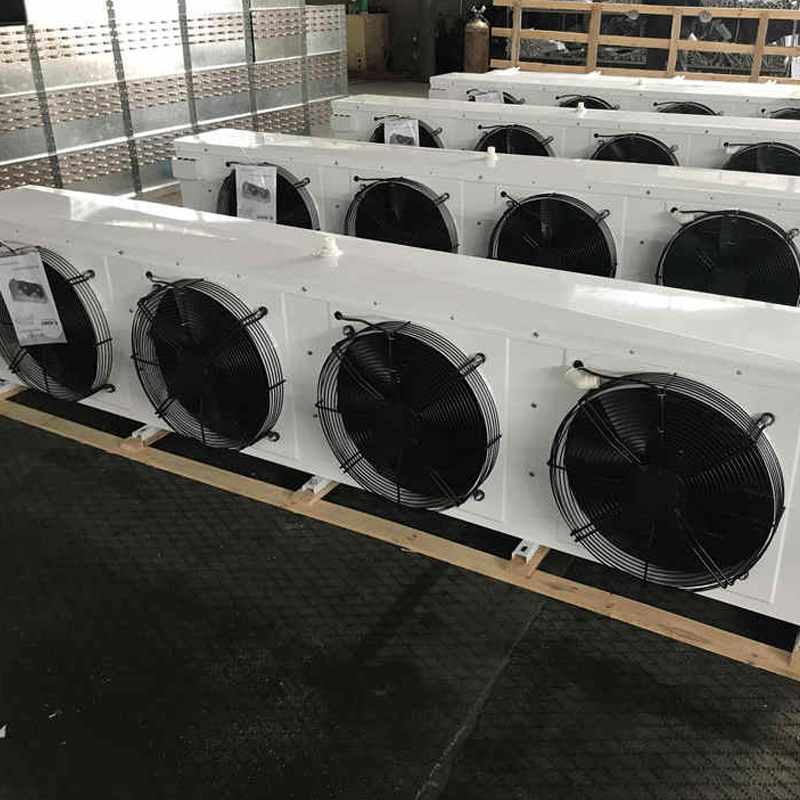

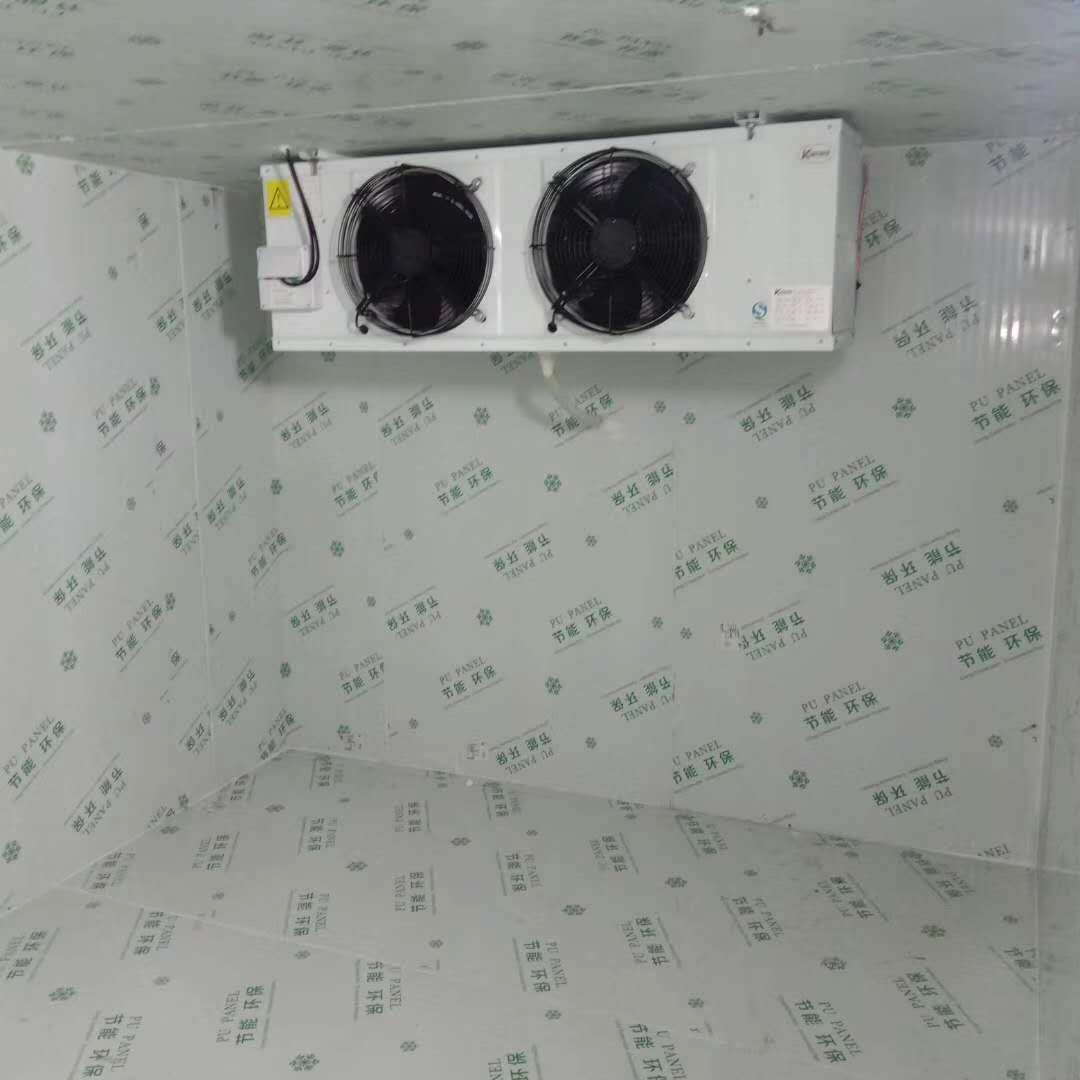

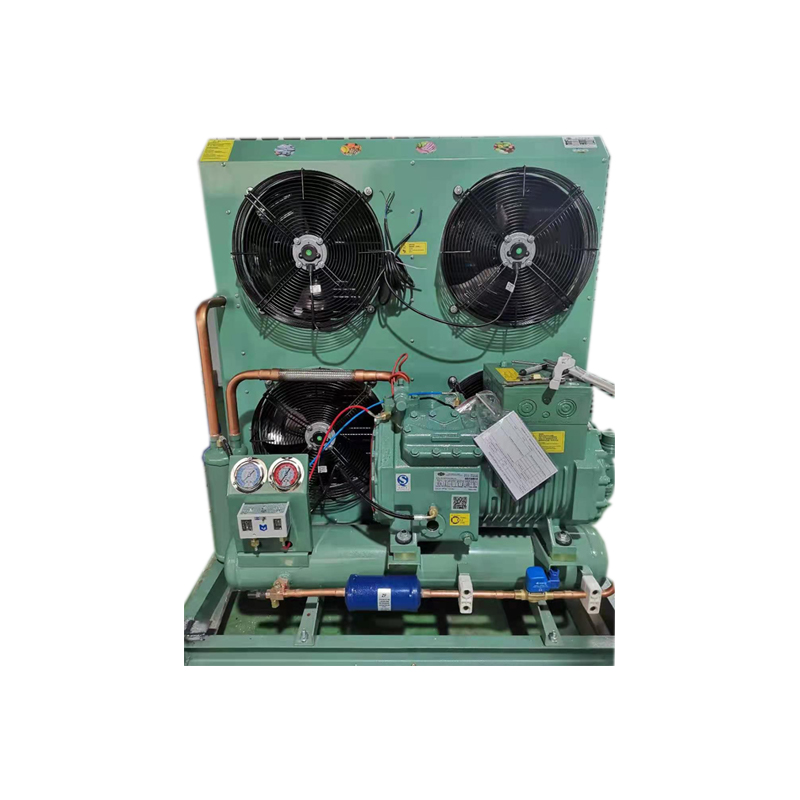

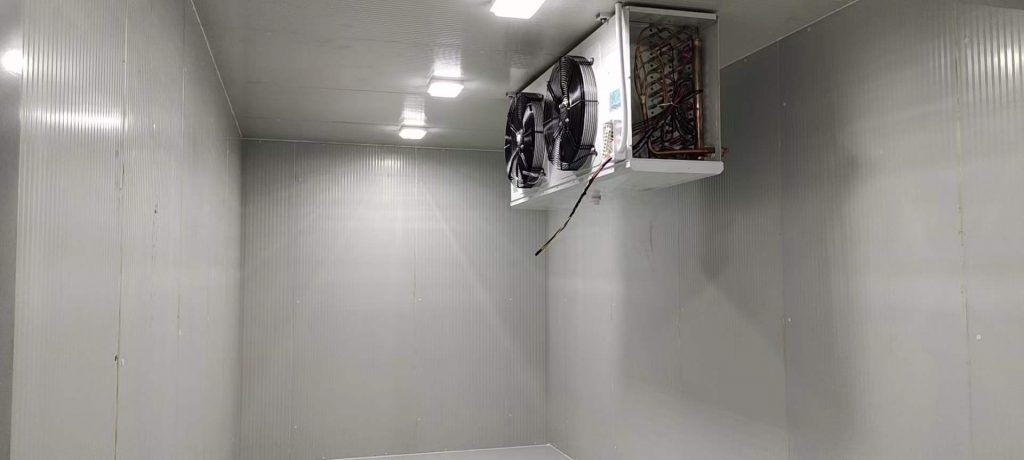

Cooling or freezing equipment. The choice of refrigeration unit is essential for the good preservation of the product. It may be monoblock or split system:
1、A monoblock refrigeration unit is one in which the condenser and evaporator are in one unit.
2、split refrigeration system that consists of two units, the condensing unit separated from the evaporator. The installation of this type of system is more complex, but it allows the selection of the type of evaporator that best adapts to the optimum preservation conditions for each product and expels the hot air from the room where the cold room is located.
. Ventilation and air extraction system.
. Locked man alarm.
. Gas leakage alarm system.
Succeful Case |

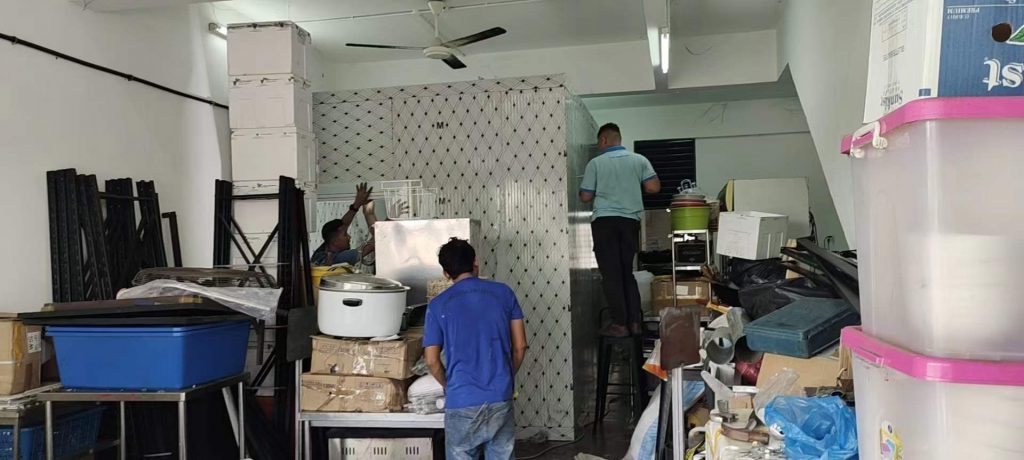

Export Malaysia cold storage

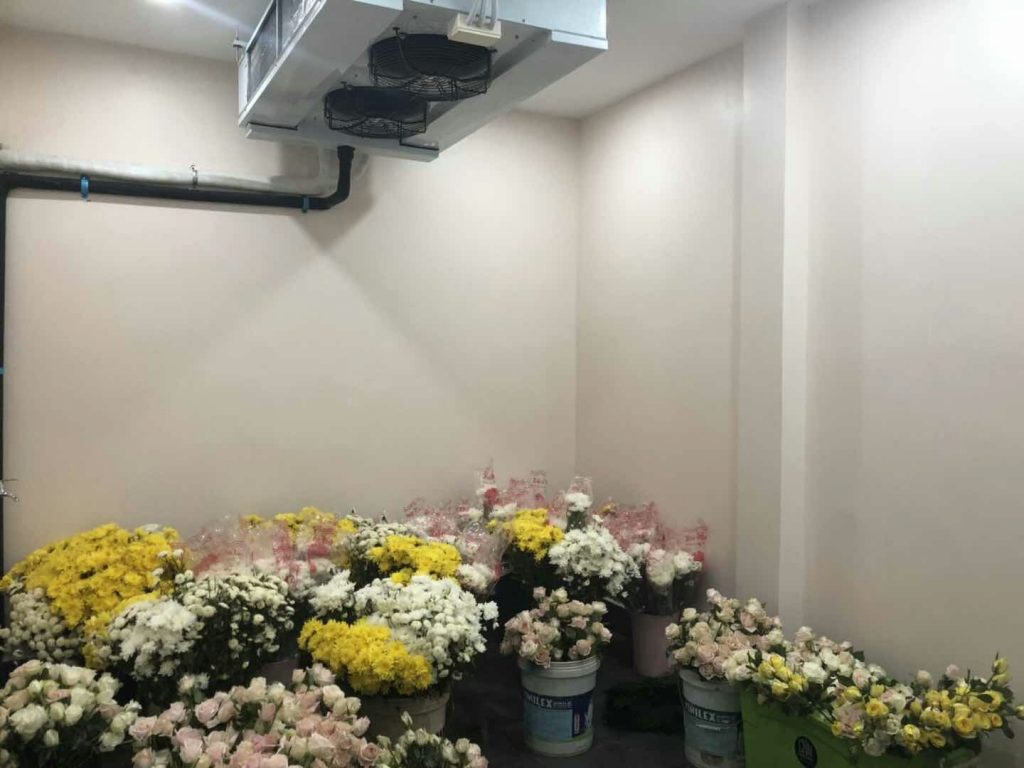

Cold Room for Fresh Flowers

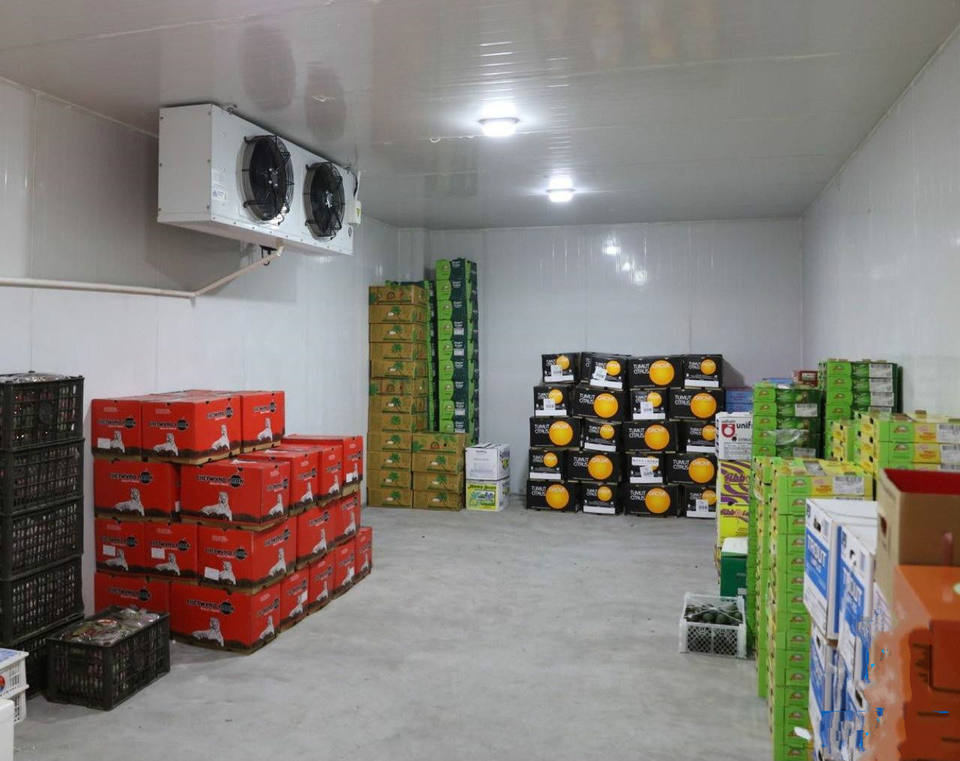

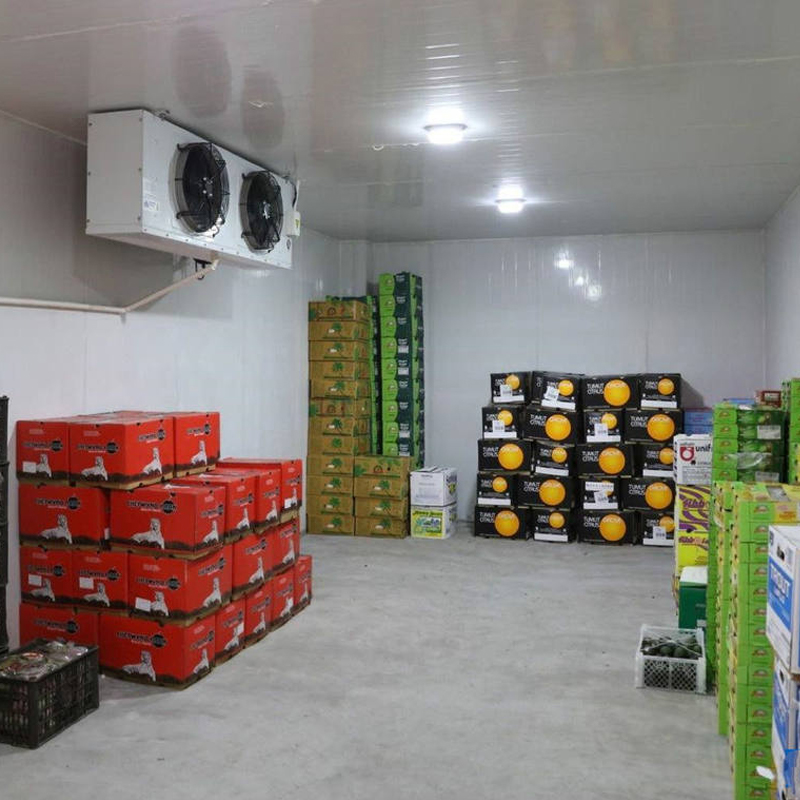

Warehouse walk-in cold storage storage
Different prices for different customizations. Any size of cold room and requirements is acceptable.
Please feel free to let us know your demand information, we will contact you as soon as possible, looking forward to cooperating with you!
